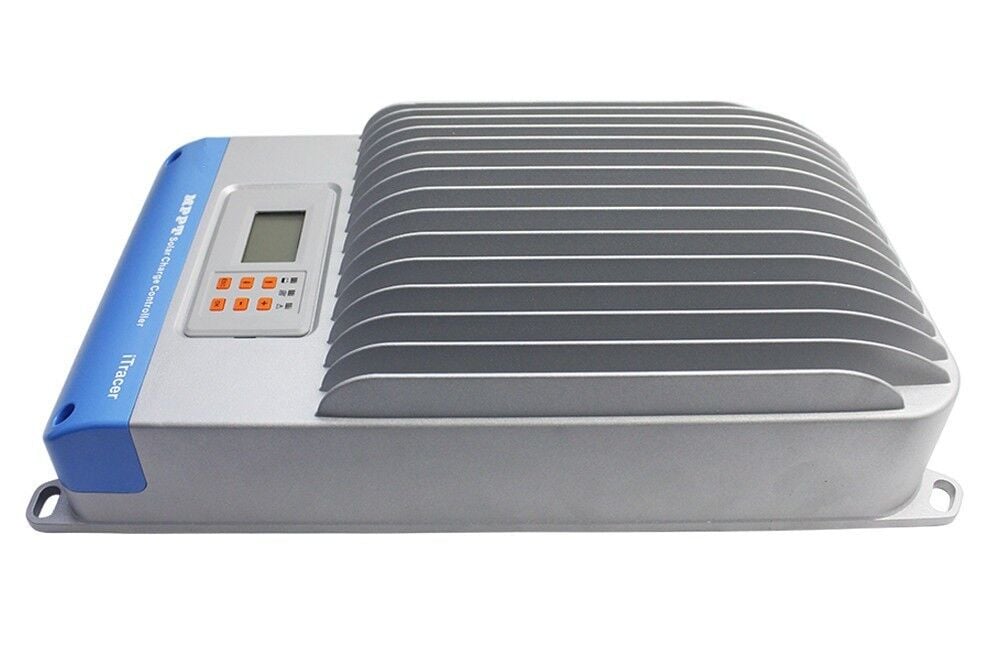

EPSOLAR NEW E-TRACER 12/24/36/48V 60A SOLAR KONTROL CİHAZI
|
Model |
ET4415BND |
ET6415BND |
|
Nominal system voltage |
12/24/36/48V auto work |
|
|
Rated battery current |
45A |
60A |
|
Max. PV open circuit voltage |
150V |
|
|
Voltage range |
8~72V |
|
|
Max. PV input power |
600W (12V) |
800W (12V) |
|
1200W (24V) |
1600W (24V) |
|
|
1800W (36V) |
2400W (36V) |
|
|
2400W (48V) |
3200W (48V) |
|
|
Self-consumption |
1.4~2.2W |
|
|
Equalize charging voltage |
Sealed: 14.6V, Flooded: 14.8V, User-defined: 9~17V |
|
|
Boost charging voltage |
Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V, User-defined: 9~17V |
|
|
Float charging voltage |
Gel /Sealed /Flooded: 13.8V, User-defined: 9~17V |
|
|
Low voltage reconnect voltage |
Gel /Sealed /Flooded: 12.6V, User-defined: 9~17V |
|
|
Low voltage disconnect voltage |
Gel /Sealed /Flooded: 11.1V, User-defined: 9~17V |
|
|
Grounding |
Common negative |
|
|
LCD temp. range |
-20℃ ~ +70℃ |
|
|
Ambient temp. range |
-25℃～+55℃ |
|
|
Storage temp. range |
-30℃～+85℃ |
|
|
Humidity range |
≤95% N.C. |
|
|
Enclosure |
IP20 |
|
|
Overall dimension |
398.6x208x107mm |
449x208x107mm |
|
Terminal |
35mm2 |
35mm2 |
|
Net Weight |
4.3kg |
5.5kg |
